A.S.R. Accurate Stitch Regulator
The included A.S.R. system senses fabric movement and regulates sewing speed to help maintain a more consistent stitch length during free-motion quilting and ruler work.
Premium computerised sewing and quilting machine

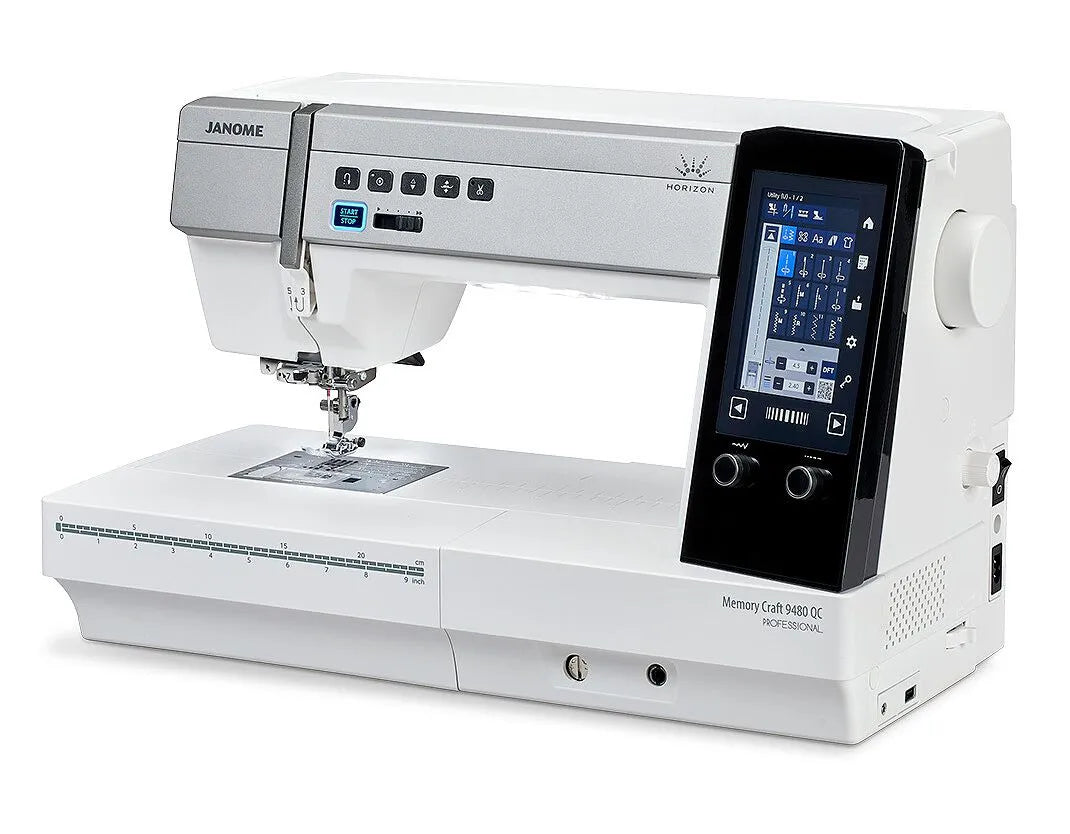

Janome Horizon Memory Craft 9480QCP Professional
Quilt with greater consistency, sew with complete control and illuminate every detail. The Janome Horizon Memory Craft 9480QCP Professional combines A.S.R. Accurate Stitch Regulation, AcuFeed Flex, Floating Mode, 400 built-in stitches and a generous 280mm workspace in a premium sewing and quilting platform.
280mm
space right of needle
1,060
stitches per minute
400
built-in stitches
25
feet included
IDEA 2024 Finalist
Hi-definition sewing and quilting
Professional quilting technology in a versatile sewing machine
The Horizon Memory Craft 9480QCP is designed for quilters and experienced sewists who want advanced fabric control, a spacious workspace and serious creative versatility without moving into Janome’s much larger Continental platform.
Its generous 280mm area to the right of the needle provides room for quilts, garments, bags and home décor projects, while the practical free arm remains available for sleeves, cuffs and tubular sewing.

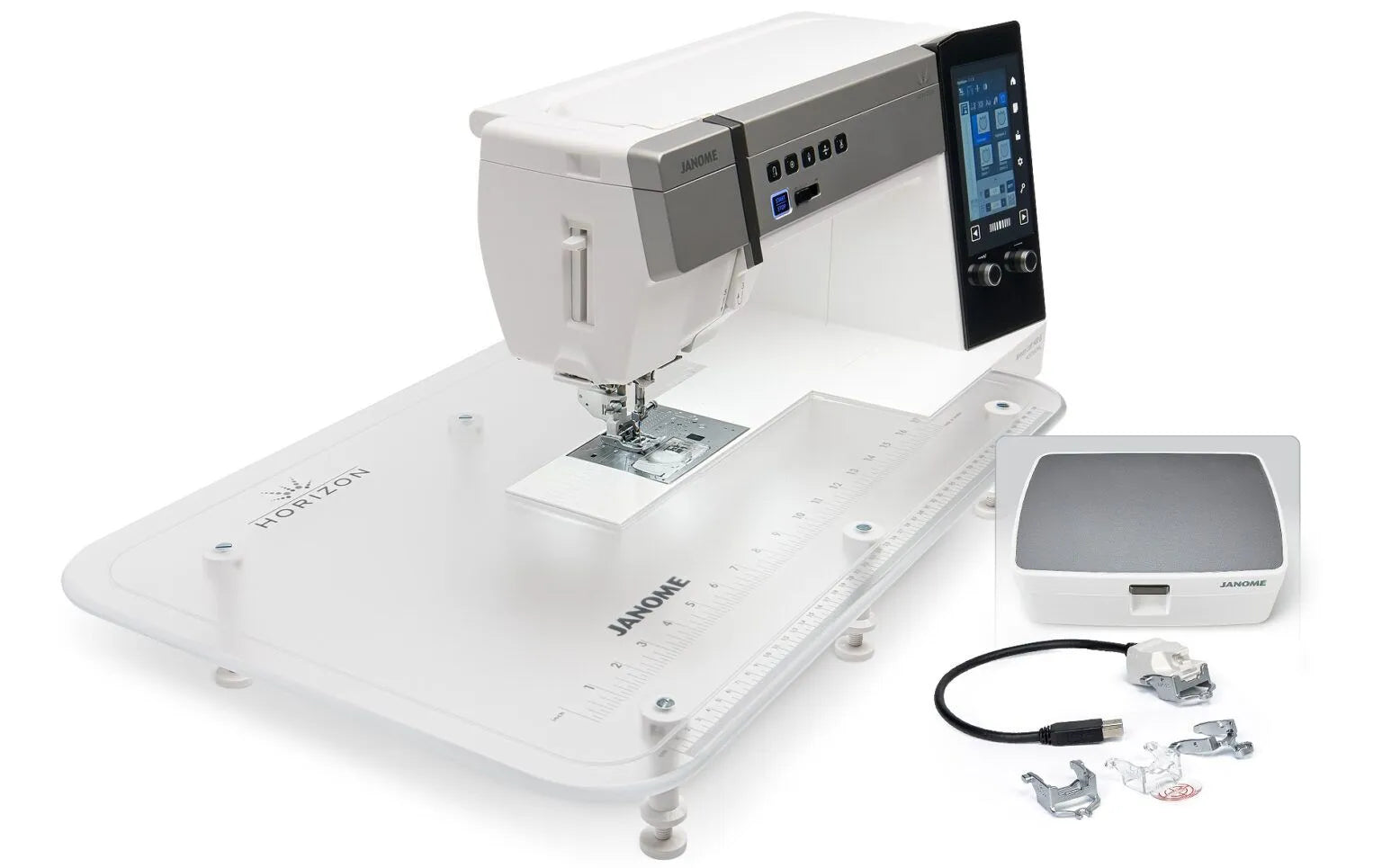

The complete New Zealand and Australian package includes Janome’s A.S.R. Accurate Stitch Regulator, four A.S.R. feet, AcuFeed Flex twin foot, professional HP2 AcuFeed foot, three needle plates, extra-wide table, adjustable knee lifter and remote thread cutter.
New Zealand and Australian package
The quilting equipment serious makers actually need is included
International packages vary. The machine supplied through authorised Janome dealers in New Zealand and Australia includes the complete A.S.R. system as standard, rather than selling it as a separate upgrade.
- A.S.R. stitch regulator
- Four specialist A.S.R. feet
- A.S.R. branded storage case
- AcuFeed twin holder and AD foot
- Professional AcuFeed HP2 foot
- Three needle plates
- Extra-wide extension table
- Adjustable knee lifter
- Large foot controller
- Remote thread cutter switch
- Metal cloth guide
- 25 supplied feet in total
Advanced features designed around real sewing and quilting
280mm quilting workspace
An 11-inch area to the right of the needle gives quilts, garments, bags and larger projects significantly more room to move.
AcuFeed Flex included
Janome’s detachable upper-feed system helps guide fabric from above and below for improved control through layers, quilt sandwiches and matched fabrics.
Floating Mode
Fine-tune the presser-foot height while sewing to help delicate, textured, layered or high-pile fabrics move without unnecessary compression.
Retractable sewing light
Pull the built-in light directly over the needle area for concentrated illumination when piecing, quilting or working with dark fabrics.
Professional HP system
The included narrow HP foot and HP needle plate improve visibility and control for precise piecing, narrow curves and accurate topstitching.
Automatic pivot function
The presser foot can rise automatically with the needle lowered, letting you turn corners or reposition fabric while keeping both hands on the project.
5-inch colour touchscreen
Navigate stitches, applications, settings and saved adjustments on a clear high-definition screen angled towards the user.
A major advantage for quilters

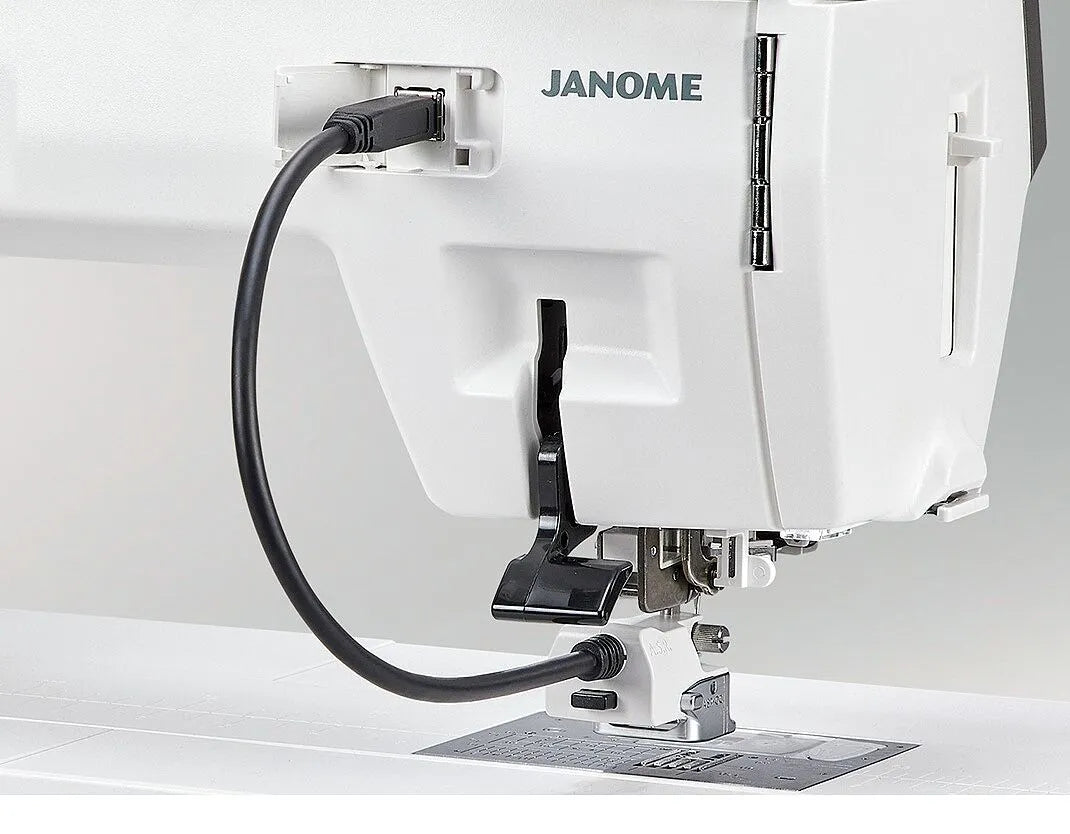

A.S.R. helps keep free-motion stitches more consistent
In traditional free-motion quilting, stitch length depends on how quickly you move the quilt in relation to the machine’s sewing speed.
Janome’s A.S.R. Accurate Stitch Regulator senses the movement of the fabric and regulates the machine to help produce more evenly spaced stitches. Sensor sensitivity can be adjusted as your technique and confidence develop.
- ASR-QC closed-toe foot
- ASR-QO open-toe foot
- ASR-QV clear-view foot
- ASR-QR ruler-work foot
- A.S.R. connecting cable
- Janome A.S.R. storage case
Space for serious projects
An 11-inch workspace with a practical free arm
The 9480QCP provides 280mm of space to the right of the needle and 120mm of workspace height, giving quilts, long seams and bulky projects more room to move.

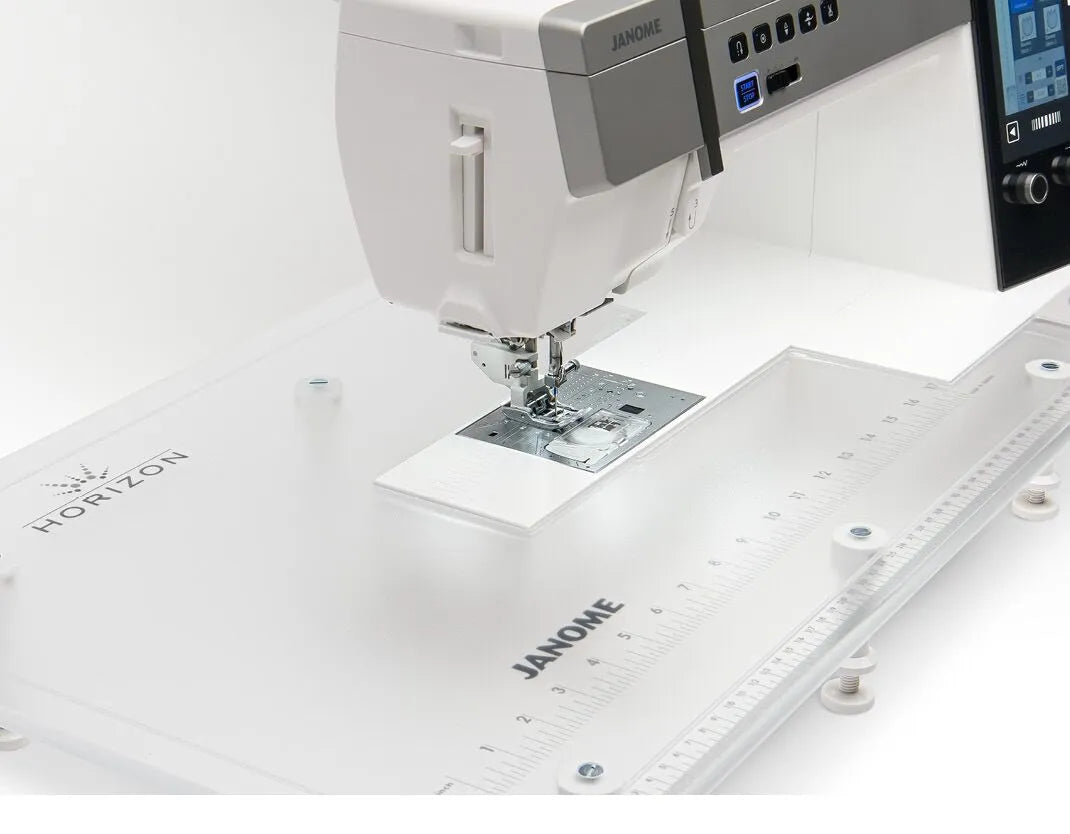

The included clear extra-wide extension table creates a large supported sewing area. Its adjustable legs twist off for compact storage, while the table’s built-in holding point helps secure the supplied metal cloth guide.

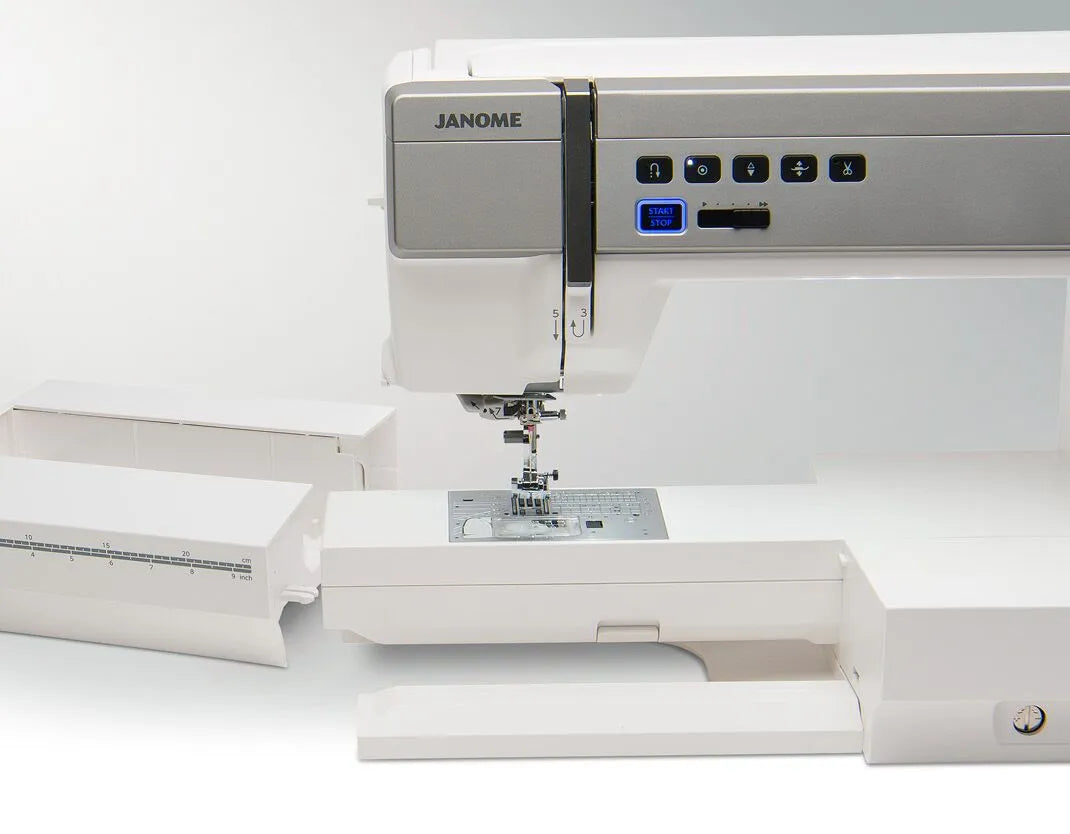

Remove the machine’s accessory section when you need the free arm for sleeves, cuffs, trouser legs and other tubular projects.
- 280mm width right of needle
- 120mm workspace height
- Extra-wide table included
- Twist-off adjustable table legs
- Free arm for tubular sewing
- Rigid aluminium internal frame

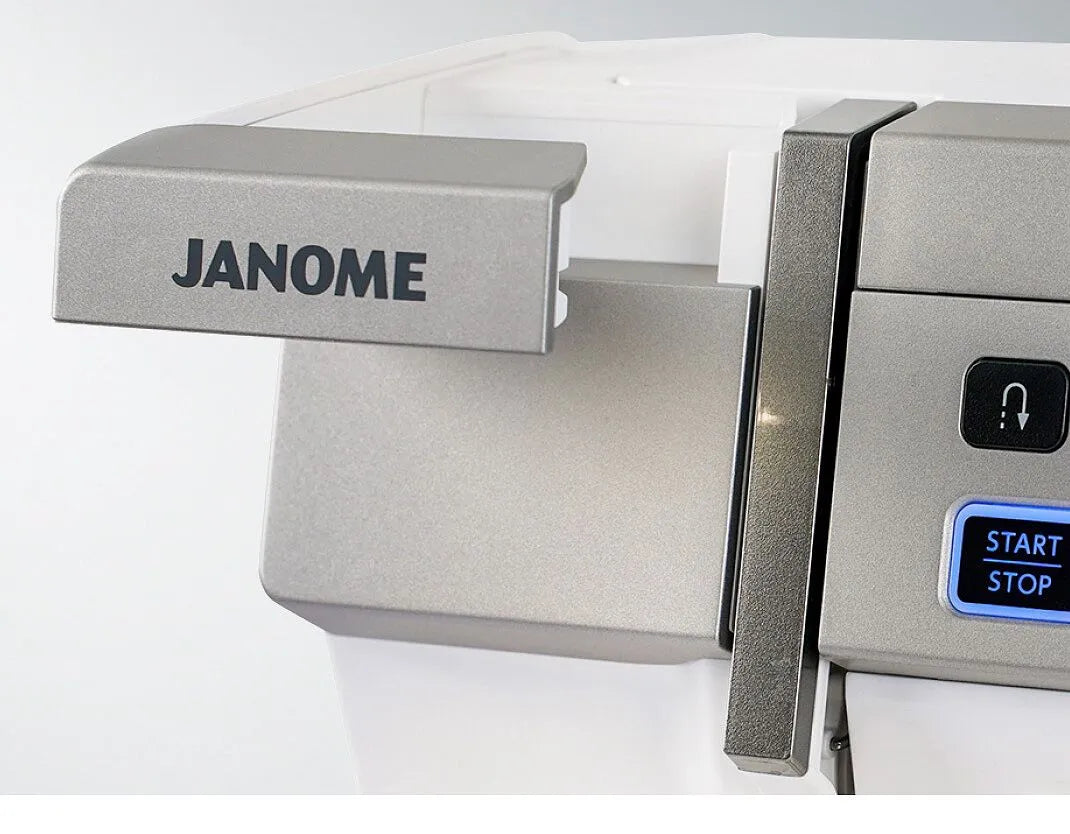

Exceptional workspace lighting
Bring concentrated light directly to the needle
Nine bright white LED lights illuminate the machine across four locations, helping reduce shadows across the needle plate, sewing bed and surrounding work area.
The built-in retractable light extends from the left side of the machine head and shines directly onto the needle area. This is especially useful for dark fabrics, fine piecing, detailed appliqué and evening sewing.
When the retractable light is not required, it slides neatly back into the machine head.

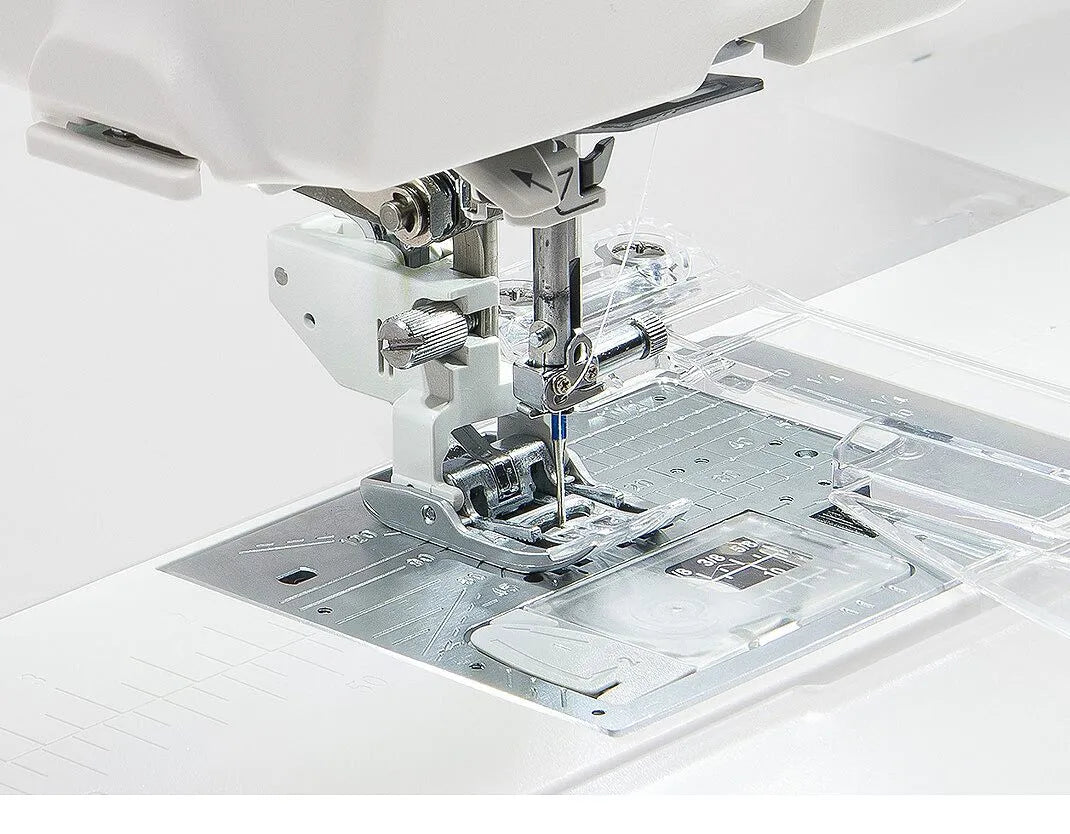

AcuFeed Flex and HP2 are supplied as standard
The 9480QCP includes Janome’s detachable AcuFeed Flex system for coordinated feeding through quilt layers, matched fabrics and demanding projects.
AD twin foot
Provides broad upper-feed support for quilting, long seams and general layered sewing.
HP2 AcuFeed foot
Combines narrow professional visibility with controlled upper feeding for precision work.
Feed balance dial
Fine-tune the relationship between upper and lower feeding if fabric begins to pucker.
Seven-piece feed dogs
Closely spaced feed teeth help reduce slipping, puckering and unwanted fabric movement.
Additional AcuFeed feet are available separately for piecing, ditch quilting, open-toe sewing, straight stitching and zipper insertion.
Advanced fabric control
Floating Mode helps protect delicate and difficult fabrics
Floating Mode adjusts the presser-foot height and pressure without changing the upper-thread tension.
By allowing the foot to sit slightly above the fabric while the feed dogs continue moving the project, it can help reduce drag, compression marks and unwanted shifting.
It is particularly useful for velvet, textured materials, high-pile fabrics, delicate layers, curved piecing and bulky seam intersections.
HP, HP2 and three needle plates included
The New Zealand and Australian package includes the professional HP foot, HP2 AcuFeed foot and dedicated HP needle plate, together with standard zigzag and straight-stitch plates.

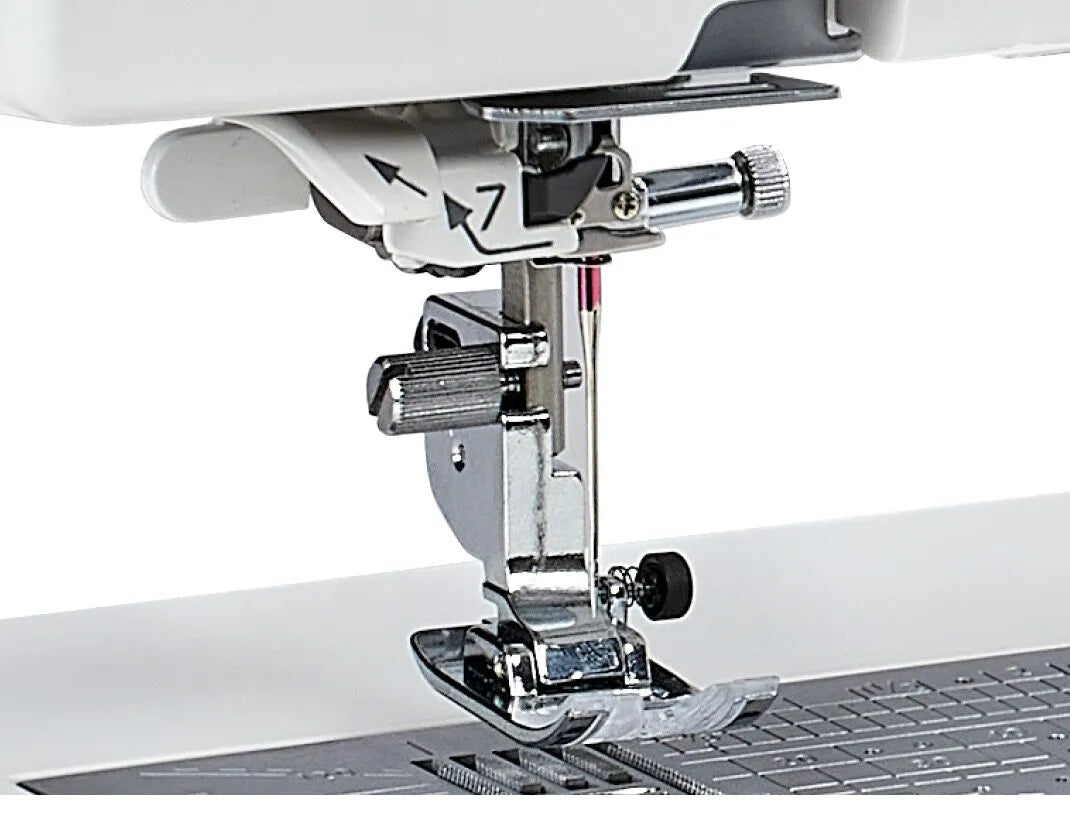

Professional HP foot
Its narrow profile improves visibility around the needle and fabric edge for accurate piecing, curves and topstitching.
HP2 AcuFeed foot
Adds upper-feed support to the professional narrow-gauge format for layered piecing and controlled construction.
Straight-stitch plate
Supports accurate straight stitching and helps stabilise fine fabrics around the needle opening.
One-step plate release
Press the release lever and replace the plate without removing screws or reaching for a tool.
Hands-free positioning
Automatic presser-foot lift and pivot function
When the pivot function is active, the machine stops with the needle lowered and raises the presser foot automatically.
You can turn, adjust or reposition the fabric while keeping both hands on your project. Begin sewing again and the foot automatically returns to the fabric.
Automatic pivoting is especially useful for appliqué, patchwork, topstitching, garment details, corners and projects involving frequent direction changes.
Intelligent on-screen guidance
A clearer way to access an advanced machine
The elevated 5-inch high-definition colour touchscreen provides an intuitive way to select stitches, edit settings and access sewing guidance.
Sewing Applications allows you to select the technique you want to complete, such as a zip, blind hem, buttonhole, patchwork seam, appliqué, free-motion quilting or ruler work. The machine then recommends suitable stitches, feet and settings.
- 5-inch high-definition screen
- Angled towards the user
- Sewing Applications guidance
- Favourite Stitch memory
- Direct-select stitch chart
- Customisable screen colours
- 16 selectable languages
- Touchscreen stylus included
Physical stitch-width and stitch-length encoder dials
Two smooth encoder dials beneath the touchscreen provide fast access to stitch width, needle position and stitch length.
Adjust a setting before sewing or make changes while stitching without repeatedly opening on-screen menus. This is particularly useful when refining a scant quarter-inch seam, adjusting decorative stitching or changing needle placement during detailed construction.
Once you have perfected a compatible stitch, save the adjustment using Favourite Stitch for quick recall on future projects.
Faster machine preparation
Superior Needle Threader 2
Position the thread, press the threading lever and release. Janome’s refined mechanism passes the thread completely through the needle eye, reducing the need to pull a small loop through by hand.
The machine also includes an Easy Set Bobbin path, built-in bobbin thread cutter and an extra spool pin that lets you wind a bobbin without removing the primary spool from the machine.
400 stitches, seven regional fonts and extensive customisation
The 9480QCP provides an extensive stitch library for construction, quilting, appliqué, heirloom work, garment sewing and decorative creativity.
400 built-in stitches
Explore utility, quilting, heirloom, satin, decorative and speciality stitch families.
Eleven buttonholes
Includes ten sensor buttonholes and one automatic buttonhole style.
Seven font selections
Regional options include Block, Script, Broadway, 9mm characters, Cyrillic, Hiragana and Katakana.
9mm stitch width
Create bold decorative stitches with up to 91 available needle positions.
Stitch tapering
Create decorative angled beginnings and endings on compatible stitch patterns.
Five-times elongation
Lengthen suitable satin stitches without reducing the original stitch density.
Mirrored stitching
Flip compatible decorative motifs to create balanced patterns and combinations.
Three megabytes of memory
Save customised stitch combinations and created patterns for future use.
Distinctive decorative effects
Create floating motifs with Mirage Stitches
Mirage Stitches use separate settings for the visible satin motif and the connecting stitches between each design element.
By adjusting the connecting stitches, the decorative motif can appear to float across a single fabric surface or bridge the gap between two pieces of fabric.
This opens up beautiful possibilities for garments, quilting, heirloom sewing, inserts and creative embellishment.
Create your own stitches
Stitch Composer software included
Stitch Composer allows you to create original sewing stitches on a compatible Windows computer.
Plot the individual stitch points, preview the result and transfer your finished pattern to the machine using a USB flash drive.
Your custom motif can then be selected, adjusted, combined and sewn alongside the machine’s built-in stitch library.
Scan the screen with Janome AcuSpark2
When a QR code appears on the machine’s touchscreen, scan it using the free Janome AcuSpark2 app on a compatible phone or tablet.
The app provides supporting information about stitches, recommended feet, adjustments and sewing techniques. It works like an additional digital instruction guide that can remain beside your machine while you sew.
The 9480QCP does not have Wi-Fi connectivity. AcuSpark2 reads the QR code displayed on the machine screen and presents the related guidance on your compatible device.
Convenience features that quickly become essential
Automatic thread cutter
Trim the upper and bobbin threads together at the touch of a button.
Remote cutter switch
Use the supplied foot-operated switch to cut threads without taking your hands off the project.
Adjustable knee lifter
Raise the presser foot or control Variable Zigzag while keeping both hands on the fabric.
Memorised needle position
Choose whether the needle stops raised or securely lowered in the project.
Automatic tension
The machine electronically manages upper-thread tension with manual adjustment available.
Automatic foot pressure
Electronic pressure control helps manage changing fabric thicknesses.
Upper-thread sensor
Receive an alert if the upper thread breaks or stops feeding correctly.
Bobbin-thread sensor
The machine warns you before the bobbin thread supply runs out.
Professional capability in the details
Created for quilters and experienced creative sewists
Free-motion quilting
Regulated quilting
Ruler work
Quilt piecing
Garment construction
Patchwork and appliqué
Thread painting
Decorative stitching
Bag making
Home décor
Heirloom sewing
Creative sewing studios
Important information before purchasing
The Horizon Memory Craft 9480QCP Professional is a premium sewing and quilting machine. It does not perform machine embroidery.
It has a spacious 280mm work area and included extension table, but it is smaller and more portable than Janome’s Continental M8 Professional.
The machine has a practical removable free arm. It is not a dedicated flat-bed-only model.
Janome Horizon Memory Craft 9480QCP feature video
Explore the machine’s quilting, lighting, touchscreen, A.S.R., AcuFeed and professional sewing features in Janome’s official demonstration.
25 specialist sewing and quilting feet included
The New Zealand and Australian package equips the 9480QCP for garment sewing, precision piecing, AcuFeed sewing, free motion, regulated quilting, ruler work, buttonholes and decorative techniques.
View all supplied sewing and quilting feet
- Zigzag Foot A
- Rolled Hem Foot D, 3mm
- Zipper Foot E
- Satin Stitch Foot F
- Open-Toe Satin Stitch Foot F2
- Blind Hemming Foot G
- Professional Grade Foot HP
- Overedge Foot M
- 1/4-inch Seam Foot O with guide
- 1/4-inch Seam Foot O without guide
- Darning Foot PD-H, closed toe
- Darning Foot PD-H, open toe
- Free-Motion Closed-Toe Foot QC
- Free-Motion Open-Toe Foot QO
- Free-Motion Zigzag Foot QV
- Variable Zigzag Foot QZ
- Ruler Work Foot QR
- ASR-QC Closed-Toe Foot
- ASR-QO Open-Toe Foot
- ASR-QV Clear-View Foot
- ASR-QR Ruler-Work Foot
- Automatic Buttonhole Foot R
- Button Sewing Foot T
- AcuFeed Foot AD with twin holder
- AcuFeed Flex Professional Grade Foot HP2

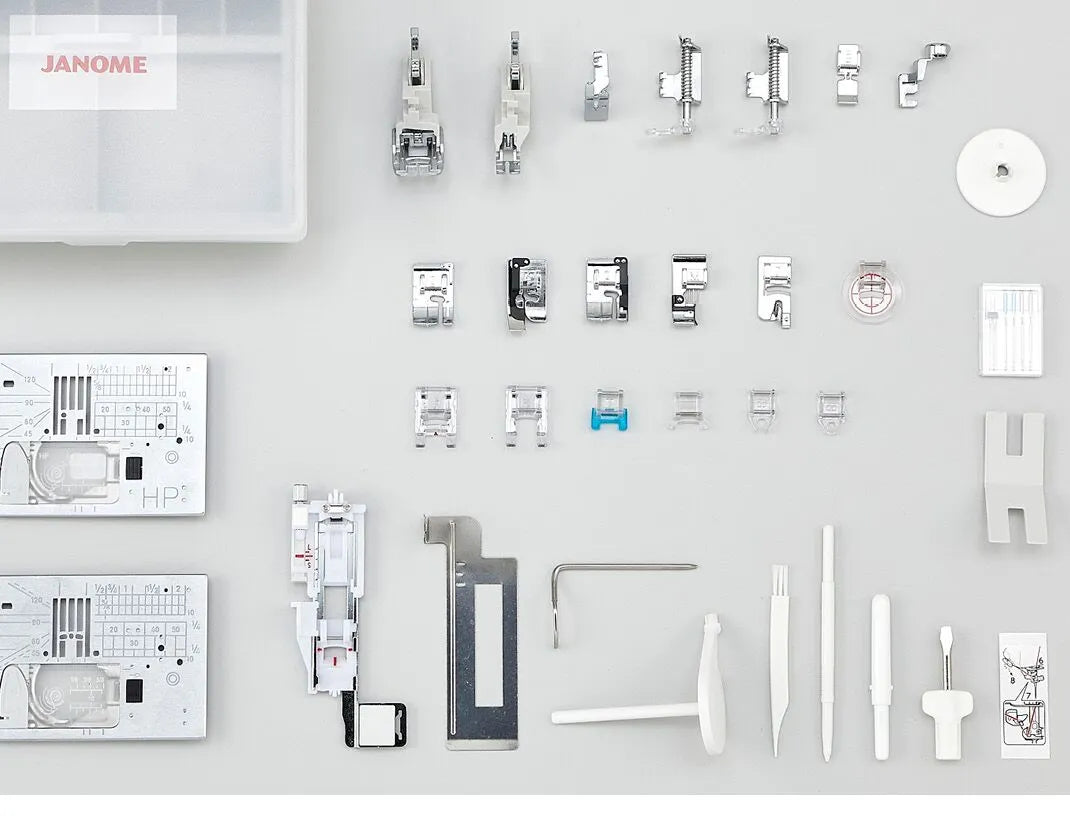

Janome Horizon Memory Craft 9480QCP standard accessories
A.S.R., needle plates and quilting equipment
- A.S.R. Accurate Stitch Regulator
- A.S.R. connecting cable
- A.S.R. branded accessory case
- ASR-QC closed-toe foot
- ASR-QO open-toe foot
- ASR-QV clear-view foot
- ASR-QR ruler-work foot
- Standard 9mm zigzag needle plate
- Straight-stitch needle plate
- Professional Grade HP needle plate
- Professional Grade HP foot
- AcuFeed twin holder and AD foot
- AcuFeed Professional Grade HP2 foot
- Quilting guide bar
- Metal cloth guide
Table, controls and major accessories
- Clear extra-wide extension table with twist-off adjustable legs
- Adjustable knee lifter
- Large-style electronic foot controller
- Foot-controller base plate
- Remote thread-cutter switch
- Touchscreen stylus
- Buttonhole stabiliser plate
- Button shank plate
- Janome resin accessory case
- Semi-hard fabric machine cover
Bobbins, needles and general accessories
- Five Janome plastic bobbins, including one fitted in the machine
- Assorted needle set
- Additional spool pin
- Large spool holders x 2
- Small spool holders x 2
- Special spool holders x 2
- Screwdriver
- Lint brush
- Seam ripper and buttonhole opener
- Threading-guide sticker
- Power cable
- Instruction book
Included digital resources
- Stitch Composer software download for compatible Windows computers
- Janome AcuSpark2 mobile app support
- Official instructional video resources
- USB stitch and pattern transfer capability
Janome Horizon Memory Craft 9480QCP specifications
| Machine type | Premium computerised sewing and quilting machine |
|---|---|
| Maximum sewing speed | Up to 1,060 stitches per minute |
| Workspace | 280mm wide x 120mm high to the right of the needle |
| Built-in stitches | 400 |
| Regional font selections | Seven, including Block, Script, Broadway, 9mm capitals and numbers, Cyrillic, Hiragana and Katakana |
| Buttonholes | Eleven, including ten sensor styles and one automatic style |
| Maximum stitch width | 9mm |
| Maximum stitch length | 5mm |
| Needle positions | 91 |
| Machine screen | Angled 5-inch high-definition colour touchscreen |
| Stitch adjustment | Touchscreen plus physical stitch-width and stitch-length encoder dials |
| A.S.R. | Accurate Stitch Regulator and four specialist A.S.R. feet included in the NZ/AU package |
| AcuFeed | Detachable AcuFeed Flex twin system and Professional Grade HP2 foot included |
| Feed system | Redesigned seven-piece feed dog system with AcuFeed balance adjustment |
| Ruler Work Mode | Yes, including standard QR and ASR-QR ruler-work feet |
| Floating Mode | Yes, with adjustable presser-foot height and pressure |
| Variable Zigzag | Yes, controlled through the included adjustable knee lifter |
| Hook type | Top-loading full rotary hook bobbin system |
| Thread tension | Electronic automatic tension with on-screen adjustment |
| Presser-foot pressure | Electronic automatic control with manual adjustment |
| Presser-foot lift | Automatic lift with pivot function and extra-high lift |
| Needle threader | Superior Needle Threader 2 |
| Needle up or down | Memorised needle stop position |
| Needle plates | Standard zigzag, straight-stitch and Professional Grade HP plates included |
| Needle-plate changing | One-step lever release without screws or tools |
| Automatic thread cutter | Yes, programmable upper and bobbin thread cutting |
| Remote thread cutter | Foot-operated remote cutter switch included |
| Thread sensors | Upper-thread and bobbin-thread sensors |
| Lighting | Nine bright white LED lights across four locations, including a retractable needle-area light |
| Drop feed | Yes, using the machine switch |
| Free arm | Yes |
| USB | One USB port |
| Wireless connectivity | No; AcuSpark2 scans QR codes displayed on the machine screen |
| Built-in memory | Approximately 3MB |
| Stitch Composer | Included as a download for compatible Windows computers |
| Languages | 16 selectable languages |
| Standard feet | 25, including four A.S.R. feet and two AcuFeed feet |
| Extension table | Clear extra-wide table with twist-off adjustable legs included |
| Adjustable knee lifter | Included |
| Machine dimensions | 535mm wide x 326mm high x 243mm deep |
| Machine weight | Approximately 13.7kg |
| Machine frame | Rigid die-cast aluminium internal frame |
| Machine cover | Semi-hard fabric cover included |
Popular optional accessories
The 9480QCP already includes an exceptional quilting package, but it can be expanded with specialist AcuFeed feet, magnifiers, garment feet and dedicated sewing furniture.
Additional AcuFeed Flex accessories
| Part number | Accessory |
|---|---|
| 202125004 | AcuFeed 1/4-Inch Quilt Piecing Foot OD, twin |
| 202103006 | AcuFeed Ditch Quilting Foot SD, twin |
| 202149004 | AcuFeed Open-Toe Foot UD, twin |
| 202102005 | AcuFeed Straight-Stitch Foot STD, twin |
| 859833006 | AcuFeed Single Holder |
| 859835101 | AcuFeed Foot VD, single |
| 859838001 | AcuFeed Zipper Foot ED, single |
Popular quilting and visibility accessories
| Part number | Accessory |
|---|---|
| 202130002 | AcuView Optic Magnifier Set with 1.2x, 1.4x and 1.6x lenses |
| 202089005 | Clear-View Quilting Foot and Guide Set OV |
| 202110006 | Free-Motion Couching Foot Set FMC |
| 200445007 | Special Bobbin Case for Free-Motion Quilting |
| 202211008 | Quilt Binder Set W1 |
| 494710003 | Universal Free-Standing Sewing Table, plate required |
| 494408005 | Plate G for Universal Sewing Table |
Popular garment and creative sewing feet
- Appliqué Foot AP
- Beading Feet L1 and L2
- Bi-Level Foot
- Binder Foot W
- Border Guide Foot FB
- Circular Sewing Attachment
- Nine-Hole Cording Foot H2
- Heavy-Duty Roller Foot
- Pintucking Feet and Cord Guides
- Piping Feet
- Ribbon and Sequin Foot
- Ruffler RF
- Straight-Stitch Foot ST
- Ultra Glide Foot and Needle Plate Set
- Concealed Zipper Foot Z
Learn more about the Horizon Memory Craft 9480QCP
Instruction Manual
Read the complete operating guide covering setup, A.S.R., AcuFeed, quilting, sewing applications, stitch programming and maintenance.
NZ and AU Brochure
View the official regional brochure with the correct New Zealand and Australian package and specifications.
Official Product Guide
Explore Janome’s detailed explanations of A.S.R., Floating Mode, AcuSpark2, lighting and creative functions.
Stitch Composer
View Janome’s download information for creating original stitches on a compatible Windows computer.
AcuSpark2
Learn how the mobile app uses QR codes from the machine screen to provide instructions and sewing support.
Regional Product Information
View Janome Australia and New Zealand’s official specifications, accessories and product information.
Janome Horizon Memory Craft 9480QCP FAQ
Is A.S.R. included with the 9480QCP in New Zealand?
Yes. The New Zealand and Australian package includes the A.S.R. Accurate Stitch Regulator, connecting cable, branded storage case and four specialist A.S.R. feet.
What does the A.S.R. stitch regulator do?
A.S.R. senses the movement of your fabric during free-motion quilting and regulates the machine’s sewing speed to help maintain a more consistent stitch length.
Does the 9480QCP include AcuFeed Flex?
Yes. The regional package includes the AcuFeed twin holder and AD foot, together with the professional HP2 AcuFeed foot.
Is the extra-wide table included?
Yes. A clear extra-wide extension table with twist-off adjustable legs is supplied as standard in the New Zealand and Australian package.
Does the machine include a knee lifter?
Yes. The adjustable knee lifter can raise and lower the presser foot hands-free and control Variable Zigzag during compatible techniques.
What is Floating Mode?
Floating Mode allows the presser foot to sit slightly above the fabric while sewing. This can help delicate, layered, high-pile or textured fabrics feed without unwanted compression or shifting.
Can the 9480QCP perform ruler-work quilting?
Yes. It includes standard Ruler Work Mode, a QR ruler-work foot and the ASR-QR regulated ruler-work foot. Always use suitable high-shank quilting rulers rather than thin rotary-cutting rulers.
Does the 9480QCP have a free arm?
Yes. Remove the machine’s accessory section to reveal the free arm for sleeves, cuffs, trouser legs and tubular projects.
How large is the sewing workspace?
The machine provides 280mm of width to the right of the needle and 120mm of workspace height.
How fast does the machine sew?
The 9480QCP can sew at up to 1,060 stitches per minute. The speed-control slider can reduce the maximum speed for detailed work.
Does the machine have Wi-Fi?
No. AcuSpark2 works by scanning a QR code displayed on the machine’s screen using a compatible phone or tablet.
Can I create my own sewing stitches?
Yes. Stitch Composer is included as a download for compatible Windows computers. Original stitch patterns can be transferred to the machine using USB.
Does the 9480QCP perform embroidery?
No. It is a premium sewing and quilting machine and does not connect to an embroidery unit.
What is the difference between the 9410QC and 9480QCP?
The 9480QCP adds the complete A.S.R. stitch-regulation system, Floating Mode, retractable sewing light, more built-in stitches, included AcuFeed equipment, included professional HP system, three needle plates, knee lifter, remote thread cutter and included extra-wide table.
Buy from New Zealand sewing and quilting specialists
Advanced quilting technology deserves knowledgeable support
Direct Sewing has supplied sewing, quilting and embroidery equipment throughout New Zealand since 2001. Our experienced team can demonstrate the Horizon Memory Craft 9480QCP, explain A.S.R., AcuFeed Flex and Floating Mode, and help you select compatible feet, needles, threads and quilting accessories.
With genuine product knowledge, nationwide support and an in-house technical workshop, you can purchase with confidence and continue receiving assistance long after your machine leaves our showroom.
For quilters who want regulated free motion, professional fabric feeding, a generous workspace and premium sewing versatility in one complete package, the Janome Horizon Memory Craft 9480QCP is an outstanding choice.
