EFLeCS Digital Feed Control
A stepping motor controls the feed mechanism, allowing stitch length and reverse-feed settings to be entered accurately from the touchscreen.
Digital direct-drive industrial plain sewer
High-Speed Production with More Room and Digital Control

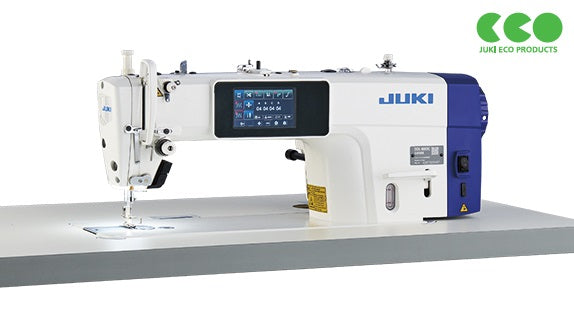

The Juki DDL-8000C is a high-speed, single-needle industrial lockstitch machine combining a generous 305mm throat space with Juki's Electric Feed Length Control System, colour touchscreen and automatic production features.
Designed for professional garment manufacturing, alterations, workrooms and growing production businesses, it delivers repeatable straight stitching at speeds of up to 5,000 stitches per minute while helping reduce repetitive operator movements.
5,000
Stitches per minute
305mm
Arm-to-needle space
5mm
Standard maximum stitch
550W
Direct-drive servo motor
220–240V
Single-phase power
A Modern Industrial Straight-Stitch Workstation
The DDL-8000C combines Juki's proven industrial lockstitch engineering with a digitally controlled feed system. Stitch length, reverse feed, condensed stitching and specialised stitch patterns can be controlled through the colour LCD touchscreen.
Its long-arm design provides 305mm between the machine arm and needle, giving the operator more room to manoeuvre garments and larger fabric sections than a conventional industrial plain sewer.
305mm Long-Arm Workspace
The extended arm-to-needle space reduces fabric congestion and makes larger garments and fabric sections easier to position.
Automatic Thread Trimming
The double-blade rotary trimming mechanism cuts close beneath the needle and can leave approximately 3.5mm of thread after trimming.
Automatic Presser-Foot Lift
The automatic lifter and supplied knee-lift arrangement reduce repetitive hand movements during professional production sewing.
Programmable Reverse Stitching
Automatic reverse stitching and condensed-stitch settings create secure beginnings and endings with a neat, consistent appearance.
Integrated Direct Drive
The 550W AC servo motor and control box are integrated with the machine head for responsive operation and a streamlined workstation.
Electric Feed Length Control System
Accurate, Repeatable Stitch Settings
The Electric Feed Length Control System, or EFLeCS, replaces conventional mechanical stitch-length adjustment with digitally controlled feed movement.
Operators can enter settings through the clear colour LCD panel, improving repeatability when moving between jobs or producing multiple garments to the same specification.
- Digital stitch-length adjustment
- Programmable reverse-feed length
- Condensed stitching for secure seam endings
- Custom and decorative feed patterns
- One-touch switching between sewing settings
- Clear colour LCD touchscreen operation
Automatic Functions That Save Operator Time
Automatic functions help reduce the number of manual actions required at the beginning and end of each seam—an important advantage in repetitive production environments.
Thread Trimmer
Automatically trims the needle and bobbin threads at the end of a seam.
Reverse Stitching
Programmable backtacking helps produce consistent seam starts and finishes.
Presser-Foot Lift
Automatic and knee-operated lifting options keep fabric handling efficient.
Needle Positioning
Selectable needle stop positions support turning, repositioning and accurate garment handling.
Cleaner Seam Starts and Finishes
Juki Shield Lubrication Design
Designed to Reduce the Risk of Oil Staining
The DDL-8000C uses Juki's oil-shielded lubrication system and an automatic oil-circulation mechanism designed to reduce oil accumulation inside the machine head.
Carefully engineered shielding around the hook, needle bar and circulating components helps minimise external oil leakage while maintaining the lubrication required for high-speed industrial use.
This is particularly valuable when producing light-coloured garments or finished products where cleanliness matters.
Operator-focused design
Better Visibility and Easier Control
LED lighting illuminates the needle-entry area from both sides, helping reduce shadows during detailed work. Brightness is adjustable through three levels.
Two customisable hand switches can be assigned to frequently used functions such as backtacking, needle up/down, single-stitch sewing and condensed stitching.
An integrated USB port is also provided for convenient device charging at the workstation.
Ideal for Light- to Medium-Weight Production Sewing
This listing describes the DDL-8000CSM light- to medium-weight configuration. It is designed for professional straight-stitch construction across a wide range of apparel and textile products.
Garment Production
Shirts, dresses, skirts, trousers and general apparel.
Uniforms
Repeatable seams for workwear, schoolwear and staff clothing.
Alterations
Fast, controlled straight stitching for professional workrooms.
Small Production Runs
Efficient operation for designers and growing local manufacturers.
For heavy canvas, upholstery, leather or consistently bulky assemblies, ask Direct Sewing about the appropriate heavy-duty needle-feed, walking-foot or heavy-weight DDL-8000C configuration.
Juki DDL-8000C Product Overview
Technical information
Juki DDL-8000C Specifications
| Machine type | Single-needle industrial lockstitch/plain sewer |
|---|---|
| Configuration described | DDL-8000CSM, light- to medium-weight materials |
| Drive system | Integrated direct-drive 550W AC servo motor |
| Feed control | Electric Feed Length Control System with stepping motor |
| Maximum sewing speed | Up to 5,000 stitches per minute |
| Factory-set speed | 4,000 stitches per minute |
| Maximum stitch length | 5mm as standard; up to 7mm with the optional long-pitch kit |
| Arm-to-needle space | 305mm |
| Needle bar stroke | 30.7mm |
| Presser-foot lift | 6mm manual; up to 13mm by knee lift |
| Needle system | DB × 1 / 16 × 231, #14 standard |
| Recommended needle range | Approximately #11–18, depending on fabric and thread |
| Thread range | Approximately #60–#8 |
| Lubrication | Juki Shield Lubrication System |
| Power requirement | Single-phase 220–240V, 50/60Hz |
| Electrical input | 450VA |
| Machine-head weight | Approximately 42kg including motor, control box and panel |
Supplied as an Assembled Industrial Workstation
Direct Sewing supplies the DDL-8000C as a complete professional workstation, assembled and tested before dispatch.
- Juki DDL-8000C machine head
- Integrated direct-drive servo motor
- Integrated electrical control box
- Colour LCD touchscreen panel
- Industrial machine table
- Industrial stand
- Foot pedal and linkage
- Knee-lift assembly
- Thread stand
- Oil reservoir and genuine machine oil
- Instruction manual
- Juki quality-control certificate
- Juki genuine-product certificate
- Needle set
- Bobbins
- Maintenance screwdrivers
- New Zealand-compatible 220–240V setup
Package contents and exact model suffix can vary. Please contact Direct Sewing if your production process requires a particular gauge, voltage, feed specification or optional accessory.
Product Resources
Why Buy Your Juki Industrial Machine from Direct Sewing?
Buying an industrial machine involves more than selecting a machine head. Correct assembly, adjustment and reliable after-sales support all contribute to long-term performance.
Assembled and Tested
Your machine is assembled, adjusted and tested by experienced industrial sewing-machine technicians before dispatch.
More Than 30 Years' Experience
Our team can help match the machine, needle, thread and setup to your production requirements.
Needles, Thread and Workshop Support
Access compatible DB × 1 needles, professional sewing thread, technical assistance and workshop servicing.
New Zealand-Wide Supply
We support professional sewing businesses throughout New Zealand with delivery and ongoing after-sales assistance.
Visit our showroom and workshop at 138 Railside Avenue, Henderson, Auckland.
Juki DDL-8000C FAQs
Is the Juki DDL-8000C a domestic or industrial sewing machine?
It is a full-size industrial straight-stitch machine designed for professional production. It is supplied with an industrial table, stand, pedal system and integrated direct-drive motor.
What type of stitching does the DDL-8000C perform?
It produces a high-quality single-needle lockstitch, commonly called an industrial straight stitch. It does not produce zigzag, overlocking or decorative domestic-machine stitches.
What fabrics is this model suitable for?
The DDL-8000CSM configuration is intended for light- to medium-weight materials used in general garment production. Very heavy, multi-layered or difficult materials may require a different industrial-machine class.
What is the advantage of the 305mm workspace?
The extended distance between the arm and needle provides more room for garments and larger fabric sections, reducing bunching and making repositioning easier.
What is EFLeCS?
EFLeCS is Juki's Electric Feed Length Control System. A stepping motor controls fabric feed so stitch length, reverse-feed length, condensed stitching and specialised feed patterns can be set digitally.
Does the machine trim the thread automatically?
Yes. Its automatic rotary thread trimmer cuts beneath the needle and can leave approximately 3.5mm of thread after trimming when correctly set.
Does it have automatic backtacking and foot lift?
The automatic configuration includes programmable reverse stitching, automatic thread trimming, needle positioning and automatic presser-foot lifting. A knee-lift arrangement is also supplied.
Does the DDL-8000C need a separate motor?
No. Its AC servo motor is directly integrated with the machine head, providing responsive operation without a conventional external belt-driven clutch motor.
Does it work with New Zealand power?
Direct Sewing supplies the appropriate single-phase 220–240V configuration for New Zealand use.
What needle system does it use?
The DDL-8000CSM uses DB × 1 industrial needles, also commonly identified as system 16 × 231. View compatible Schmetz DB × 1 needles.
Where can I purchase suitable thread?
Direct Sewing stocks a wide range of professional sewing threads. View the thread collection.
Is the machine assembled before delivery?
Yes. Direct Sewing supplies the machine as an assembled industrial workstation and tests its operation before dispatch.
What after-sales support is available?
Direct Sewing provides product advice, technical assistance, workshop servicing and access to compatible needles and professional sewing thread from its Henderson, Auckland location.
